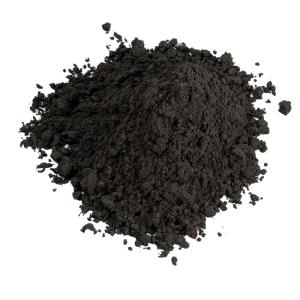

Conductive Carbon Black Super-P Li For Li-Ion Battery Cathode Raw Materials

Conductive Carbon Black Super-P Li For Li-Ion Battery Cathode Raw Materials

Super P Li is used for preparing Li-ion battery electrode material and conducting material.
It is TIMCAL Graphite & Carbon Super P Conductive Carbon Black with high hydrochloric acid absorption rate.

Property Test Method Unit Value

Volatile Content (1) Internal Method 02 % 0.15 max

Toluene Extract ASTM D4527-99 % 0.1 max

Ash content (600 °C) ASTM D1506-99 % 0.05 max

Grit content >45 microns ASTM D1514-01 ppm 5 max

Grit content >20 microns ASTM D1514-01 ppm 25 max

Iron (total) Internal Method 20 ppm 10 max

Typical Values

Property Test Method Unit Value

BET Nitrogen surface area ASTM D3037-89 m²/g 62

Adsorption stiffness value (2) Internal Method 01 ml/5g 32

Moisture (as packed) ASTM D1509-95 % 0.1

Density (in the bag) Internal Method 26 kg/ m3 160

Sulphur Content Internal Method 03 % 0.02

Iron (3) Internal Method 20 ppm 5

Nickel (3) Internal Method 20 ppm 1

Vanadium (3) Internal Method 20 ppm <1

pH ASTM D1512-95 - 10

Grit content >45 microns ASTM D1514-01 ppm <2

Grit content >20 microns ASTM D1514-01 ppm 12

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
